Quickstart

Download this notebook (.ipynb) · Read the saved outputs here, or run the cells in Jupyter.

Define a spherical galaxy, inspect its predicted line-of-sight dispersion, generate mock velocities, and infer five parameters with JAX and NumPyro NUTS. The tutorials explain the choices and add storage, restart and alternative backends.

Follow the installation guide with the numpyro_cpu and plotting extras. Run the following cells in order in a fresh Python process or notebook kernel. Use Restart Kernel and Run All Cells to reproduce the complete example.

1. Define the model

The three components are a Plummer stellar tracer, a generalized NFW dark-matter halo (ZhaoModel with alpha=1, beta=3) and constant spherical anisotropy. We infer the inner density slope gamma along with the halo radius and density scales, anisotropy and systemic velocity. The mock has gamma=1 (standard NFW). JAX components receive physical parameters on each call. Lengths are in pc, velocities in km/s, and mass densities in solar masses per pc³. The normalized tracer contributes no gravitational mass. Set the JAX environment before importing it.

import os
os.environ.setdefault("JEANSPY_JAX_PLATFORM", "cpu")
os.environ.setdefault("JEANSPY_JAX_ENABLE_X64", "true")

# The example uses no progress widgets; ignore only their optional-import warning.
import warnings
warnings.filterwarnings("ignore", message="IProgress not found.*")

# Import JeansPy before JAX so its runtime settings take effect.
from jeanspy.model_jax import (
    DSphModel, PlummerModel, ZhaoModel, ConstantAnisotropyModel,
)
from jeanspy.sampler_numpyro import JeansLikelihoodModel, ParameterSpec
import jax
import numpyro.distributions as dist
from numpyro.infer import MCMC, NUTS, init_to_value
import numpy as np
import matplotlib.pyplot as plt

model = DSphModel(submodels={
    "StellarModel": PlummerModel(),
    "DMModel": ZhaoModel(),
    "AnisotropyModel": ConstantAnisotropyModel(),
})
fixed = dict(re_pc=200., alpha=1., beta=3., r_t_pc=np.inf)
truth = dict(**fixed, rs_pc=500., rhos_Msunpc3=.1, gamma=1., beta_ani=0.)
options = dict(solver="kernel", n_u=128, n_kernel=32,
               dm_mass_method="numeric", dm_mass_n_steps=128)

fixed holds the tracer scale, alpha=1, beta=3 and the untruncated halo cutoff (r_t_pc=np.inf); truth adds the parameters used to generate data. options chooses the numerical resolution. The backend tutorial explains the JAX interface and compilation.

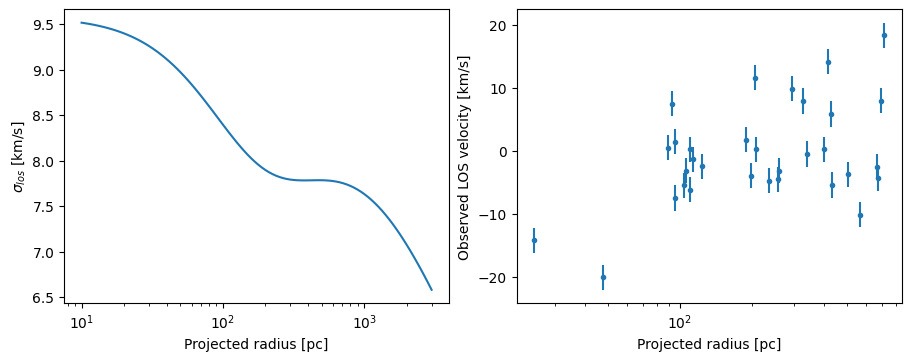

2. Plot the prediction and generate mock data

sigmalos2 returns the intrinsic LOS variance, in (km/s)². Its square root is the dispersion. A measured velocity additionally has measurement variance e_vlos_kms**2. Here we generate 32 stars with Gaussian LOS velocities at projected Plummer radii and a systemic velocity of zero.

rng = np.random.default_rng(123)
u = rng.uniform(size=32)
R_pc = 200. * np.sqrt(u / (1. - u))  # Projected Plummer radii.
e_vlos_kms = np.full(32, 2.)
variance = np.asarray(model.sigmalos2(R_pc, params=truth, **options))
vlos_kms = rng.normal(0., np.sqrt(variance + e_vlos_kms**2))
data = dict(R_pc=R_pc, vlos_kms=vlos_kms, e_vlos_kms=e_vlos_kms)

R_grid = np.geomspace(10., 3000., 100)
sigma_kms = np.sqrt(model.sigmalos2(R_grid, params=truth, **options))
prediction, axes = plt.subplots(1, 2, figsize=(9, 3.5), layout="constrained")
axes[0].semilogx(R_grid, sigma_kms)
axes[0].set(xlabel="Projected radius [pc]", ylabel=r"$\sigma_{los}$ [km/s]")
axes[1].errorbar(R_pc, vlos_kms, yerr=e_vlos_kms, fmt=".")
axes[1].set(xscale="log", xlabel="Projected radius [pc]",
            ylabel="Observed LOS velocity [km/s]")
plt.show()

In an interactive notebook the figure is displayed immediately; the plots are saved with this notebook for reading without a kernel. These mock velocities follow the Gaussian likelihood used below; they are not samples from a full phase-space distribution function.

3. Run MCMC

Use JeansLikelihoodModel to combine the Jeans prediction and measurement errors in a Gaussian velocity likelihood. ParameterSpec names each sampling coordinate and its prior. pow10 converts a sampled base-10 logarithm into the positive physical scale passed to the model.

def physical_parameters(sampled):
    return {**fixed, **sampled}

likelihood = JeansLikelihoodModel(
    model,
    [ParameterSpec.pow10("log10_rs_pc", dist.Uniform(1.5, 4.), param_name="rs_pc"),
     ParameterSpec.pow10("log10_rhos_Msunpc3", dist.Uniform(-3., 1.),
                         param_name="rhos_Msunpc3"),
     ParameterSpec("gamma", dist.Uniform(0., 2.)),
     ParameterSpec("beta_ani", dist.Uniform(-1., .75)),
     ParameterSpec("vmem_kms", dist.Uniform(-50., 50.))],
    parameter_postprocess=physical_parameters,
    sigmalos2_kwargs=options,
)

The priors are uniform in the named coordinates: log halo radius, log halo density, inner slope gamma, anisotropy and systemic velocity. The halo priors span about 32–10,000 pc in scale radius, 0.001–10 solar masses per pc³ in density scale, and gamma=0 (a finite-density core) through gamma=2 (a steep cusp). They are illustrative choices for this mock dataset. Run two independent chains sequentially on the CPU; each has 200 warmup steps and 256 posterior draws. The first run also compiles the JAX calculation and may take longer than subsequent evaluations.

kernel = NUTS(likelihood, target_accept_prob=.85,
              init_strategy=init_to_value(values={
                  "log10_rs_pc": np.log10(500.), "log10_rhos_Msunpc3": -1.,
                  "gamma": 1., "beta_ani": 0., "vmem_kms": 0.}))
mcmc = MCMC(kernel, num_warmup=200, num_samples=256,
            num_chains=2, chain_method="sequential", progress_bar=False)
mcmc.run(jax.random.PRNGKey(42), **data)

4. Inspect the result

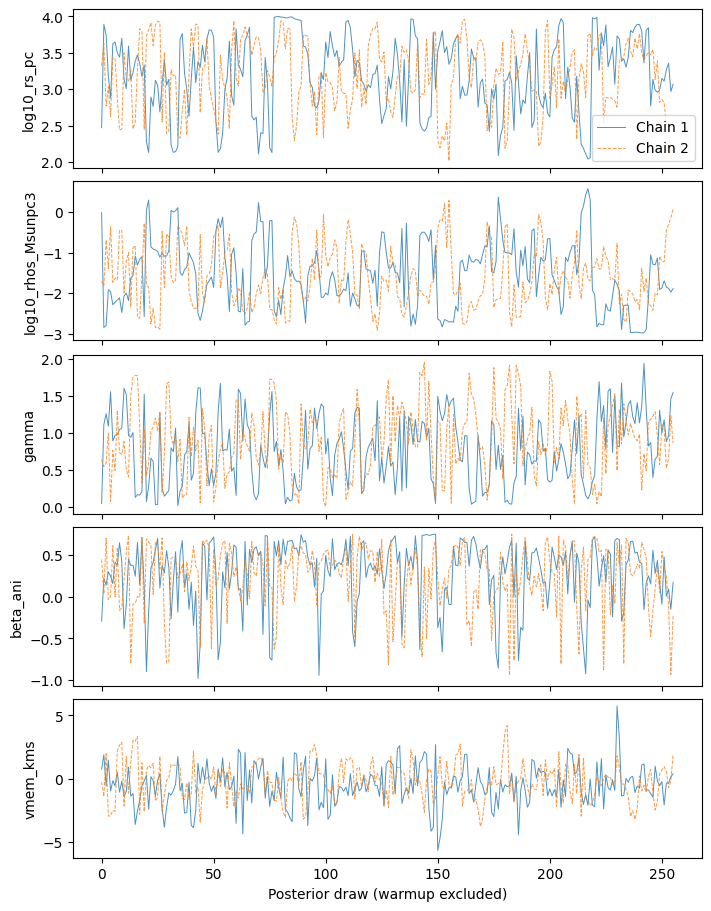

Print the posterior summary, central 68% intervals and divergence count, then plot the two chains separately. get_samples(group_by_chain=True) retains the (chain, draw) axes; warmup is already excluded.

The 16%, 50% and 84% lines are marginal quantiles; the NumPyro summary table above them uses its own default interval.

names = ["log10_rs_pc", "log10_rhos_Msunpc3", "gamma", "beta_ani", "vmem_kms"]
mcmc.print_summary(exclude_deterministic=True)
posterior = mcmc.get_samples(group_by_chain=True)  # Each value: (chain, draw).
for name in names:
    interval = np.quantile(np.asarray(posterior[name]), [.16, .5, .84])
    print(name, "16%, 50%, 84%:", interval)
print("Divergences:", int(mcmc.get_extra_fields()["diverging"].sum()))

traces, axes = plt.subplots(len(names), 1, figsize=(7, 9), sharex=True, layout="constrained")
for i, name in enumerate(names):
    for chain_index, values in enumerate(np.asarray(posterior[name])):
        axes[i].plot(values, alpha=.8, lw=.7,
                     ls=["-", "--"][chain_index], label=f"Chain {chain_index + 1}")
    axes[i].set_ylabel(name)
axes[0].legend()
axes[-1].set_xlabel("Posterior draw (warmup excluded)")
plt.show()

                          mean       std    median      5.0%     95.0%     n_eff     r_hat
            beta_ani      0.26      0.40      0.37     -0.32      0.75    344.90      1.00
               gamma      0.84      0.47      0.84      0.03      1.47    126.30      1.02
  log10_rhos_Msunpc3     -1.57      0.79     -1.65     -2.84     -0.33    128.80      1.00
         log10_rs_pc      3.19      0.50      3.21      2.45      3.99    158.09      1.00
            vmem_kms     -0.36      1.55     -0.41     -2.66      2.14    277.42      1.01

Number of divergences: 0
log10_rs_pc 16%, 50%, 84%: [2.627286   3.20603121 3.73742021]
log10_rhos_Msunpc3 16%, 50%, 84%: [-2.39294506 -1.64623572 -0.69040784]
gamma 16%, 50%, 84%: [0.28742612 0.83563869 1.3189514 ]
beta_ani 16%, 50%, 84%: [-0.11947856  0.36886324  0.64386511]
vmem_kms 16%, 50%, 84%: [-1.86406728 -0.41261298  1.26495556]
Divergences: 0

Compare posterior profiles with the true and MAP models

First find a numerical maximum a posteriori (MAP) point. Here MAP refers to density in the sampled coordinates (log10_rs_pc, log10_rhos_Msunpc3, gamma, beta_ani, vmem_kms) with the priors above. MAP depends on coordinates: maximizing density in linear radius/density is a different problem. log_density evaluates the same likelihood and priors; the unconstrained NUTS potential energy includes transformation Jacobians and must not be used directly for this definition.

Bounded optimization starts from several posterior draws. The best successful result is a numerical MAP candidate, not a proof of the global maximum. Its reported objective should improve on the best saved draw. Inspect any prior boundary reported below; a boundary mode can be strongly prior-dependent.

import jax.numpy as jnp
from numpyro.infer.util import log_density
from scipy.optimize import minimize

# Each row stays a joint posterior draw in the original sampling coordinates.
flat = np.column_stack([np.asarray(posterior[name]).reshape(-1) for name in names])
bounds = [(1.5, 4.), (-3., 1.), (0., 2.), (-1., .75), (-50., 50.)]

def log_posterior(theta):
    sampled = {name: theta[i] for i, name in enumerate(names)}
    return log_density(likelihood, (), data, sampled)[0]

value_and_grad = jax.jit(jax.value_and_grad(lambda theta: -log_posterior(theta)))

def objective(theta):
    value, gradient = value_and_grad(jnp.asarray(theta))
    return float(value), np.asarray(gradient, dtype=float)

# Start at the best saved draw and at draws spread across both chains.
logp_draws = np.asarray(jax.lax.map(log_posterior, jnp.asarray(flat)))
starts = np.unique(np.r_[np.argmax(logp_draws), np.linspace(0, len(flat)-1, 5, dtype=int)])
fits = [minimize(objective, flat[i], jac=True, bounds=bounds, method="L-BFGS-B",
                 options={"maxiter": 500, "ftol": 1e-10, "gtol": 1e-6}) for i in starts]
successful = [fit for fit in fits if fit.success and np.isfinite(fit.fun)]
if not successful:
    raise RuntimeError("MAP optimization did not converge; inspect the optimizer results.")
best_fit = min(successful, key=lambda fit: fit.fun)
map_theta = best_fit.x
assert -best_fit.fun >= logp_draws.max() - 1e-6
print("Converged MAP searches:", len(successful), "/", len(fits))
print("Numerical MAP:", dict(zip(names, np.round(map_theta, 4).tolist())))
print("MAP log posterior:", round(-best_fit.fun, 4))
print("Best saved-draw log posterior:", round(float(logp_draws.max()), 4))
at_bound = [name for name, value, (lo, hi) in zip(names, map_theta, bounds)
            if np.isclose(value, lo, atol=1e-5) or np.isclose(value, hi, atol=1e-5)]
print("MAP coordinates at a prior bound:", at_bound)

Converged MAP searches: 6 / 6
Numerical MAP: {'log10_rs_pc': 4.0, 'log10_rhos_Msunpc3': -2.1904, 'gamma': 0.6041, 'beta_ani': 0.75, 'vmem_kms': -0.2776}
MAP log posterior: -116.8054
Best saved-draw log posterior: -117.026
MAP coordinates at a prior bound: ['log10_rs_pc', 'beta_ani']

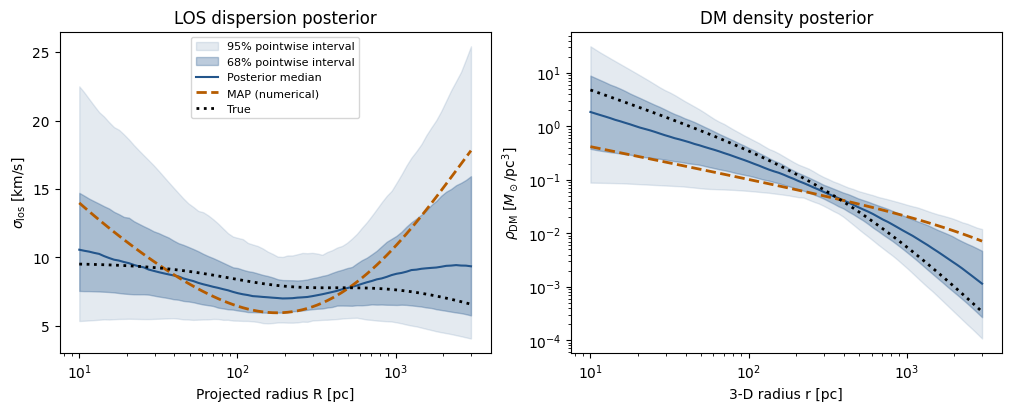

Now propagate every joint posterior draw through the forward model. The shading gives central 68% and 95% pointwise credible intervals; the blue line is the pointwise median. These bands describe uncertainty in the intrinsic dispersion and halo density, not the scatter of new observed velocities and not a simultaneous interval for the entire curve. The orange dashed MAP curve is one joint model, so it need not follow the median curve. Black dotted curves show the mock’s true model.

profile_grid = np.geomspace(10., 3000., 80)

def physical_from_theta(theta):
    log_rs, log_rho, g, beta, mean = theta
    return {**fixed, "rs_pc": 10.**log_rs, "rhos_Msunpc3": 10.**log_rho,
            "gamma": g, "beta_ani": beta, "vmem_kms": mean}

def profiles(theta):
    params = physical_from_theta(theta)
    sigma = jnp.sqrt(model.sigmalos2(profile_grid, params=params, **options))
    density = model["DMModel"].mass_density_3d(profile_grid, params=params)
    return jnp.stack([sigma, density])

# lax.map evaluates every joint draw without materializing a huge mass grid.
profile_draws = np.asarray(jax.lax.map(profiles, jnp.asarray(flat)))
assert np.all(np.isfinite(profile_draws) & (profile_draws > 0))
bands = np.quantile(profile_draws, [.025, .16, .5, .84, .975], axis=0)
true_theta = np.array([np.log10(truth["rs_pc"]), np.log10(truth["rhos_Msunpc3"]),
                       truth["gamma"], truth["beta_ani"], 0.])
true_profiles = np.asarray(profiles(true_theta))
map_profiles = np.asarray(profiles(map_theta))

fig, axes = plt.subplots(1, 2, figsize=(10, 4), layout="constrained")
for i, ax in enumerate(axes):
    low95, low68, median, high68, high95 = bands[:, i]
    ax.fill_between(profile_grid, low95, high95, color="#23558b", alpha=.12,
                    label="95% pointwise interval")
    ax.fill_between(profile_grid, low68, high68, color="#23558b", alpha=.3,
                    label="68% pointwise interval")
    ax.plot(profile_grid, median, color="#23558b", label="Posterior median")
    ax.plot(profile_grid, map_profiles[i], color="#b65c00", ls="--", lw=2,
            label="MAP (numerical)")
    ax.plot(profile_grid, true_profiles[i], color="black", ls=":", lw=2, label="True")
    ax.set_xscale("log")
axes[0].set(xlabel="Projected radius R [pc]", ylabel=r"$\sigma_{\rm los}$ [km/s]",
            title="LOS dispersion posterior")
axes[1].set(xlabel="3-D radius r [pc]", ylabel=r"$\rho_{\rm DM}$ [$M_\odot$/pc$^3$]",
            yscale="log", title="DM density posterior")
axes[0].legend(fontsize=8)
plt.show()

Inspect mixing, effective sample size, R-hat and divergences before interpreting the intervals. These short chains demonstrate the workflow; a run that finishes does not establish convergence or interval calibration. The MCMC tutorial explains convergence diagnostics, NUTS divergences and corner contours.

Continue with units and basic conventions, or go directly to saving and resuming results. For individual signatures and options, use the API reference.
